Naming Conventions Best Practices

It is recommended to standardize your naming format. It makes the code readable and understandable. This is very helpful when more than one developer is involved. Use the following conventions:

Upper CamelCase comprises several words joined together without spaces, with the initial letter in uppercase and the first letters of subsequent words in uppercase, for example, LastName.
Lower CamelCase comprises several words joined together without spaces, with the initial letter in lowercase and the first letters of subsequent words in uppercase, for example, readData.

Functions/Methods

Object	Convention	Examples
Function/method	Lower CamelCase	read() readCustomerData()
Type	Upper CamelCase	SubAccount
Property	Upper CamelCase	Address ZipCode
Local Variable used inside a Function	Lower CamelCase	Declare output of Text Declare configKey of Number
Parameters	Lower CamelCase	pSubAccount
Testing functions	Begin with zz	zzreadData()

In addition, if your solution requires additional functions, you can develop additional Library functions in Visual Studio. See the APA Library Functions SDK.

Other Entities

Rules, Event Handlers, Callouts, Launch In Context, Data Collection, and Database Commands.

Object	Convention	Examples
Rules Event Handlers Callouts Launch In Context Data Collection	Upper CamelCase	ShowTestCallout CloseClicked ReadLedgerData TestCallout
Database Commands	Lower CamelCase (after any prefix)
Local Commands	Begin with lcl_	lcl_getInteraction
Server Commands	Begin with svr_	svr_getInteraction
Testing entities	Begin with zz	zzShowCallout zzAccountData

Screen Elements

Object	Convention	Examples
Visible Screen Elements	Upper CamelCase	Meaningful names, for example: FirstName LastName CreditCardField CCField
Non-Visible Screen Elements	No need to modify.
Father branch	Upper CamelCase	Meaningful names (in Web connectors this is the HTML document), for example: OrderPage ConfirmationPage

Object

Convention

Examples

Visible Screen Elements

Upper CamelCase

Meaningful names, for example:

FirstName

LastName

CreditCardField

CCField

Non-Visible Screen Elements

No need to modify.

Father branch

Upper CamelCase

Meaningful names (in Web connectors this is the HTML document), for example:

OrderPage

ConfirmationPage

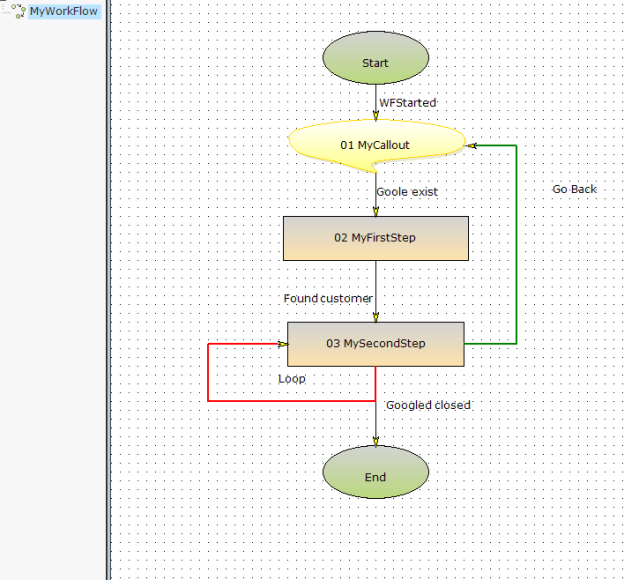

Workflow

Object	Convention	Examples
Steps	Upper CamelCase	Begin with an increasing unique number, for example: 01 MyFirstStep 02 MySecondStep
Graphics – Steps	Use legend per step type (decision/action/ callout)
Graphics – Transitions	Loop transition: {Width=3,Color [Red]}
	Go back transition: {Width=3,Color [Green]}
	AT(Always true): {Width=3,Color[GreenYellow]}
	Event transition: {Width=3,Color [Gold]}
Transition	Locate the label close to the transition.
	When using a generic name, add the step name.	For example, for a step named 01 MyFirstStep, use a generic transition name such as 01 Retry or 01 True.

Commenting

Add comments anywhere where multiple actions are executed in the business logic to break down and describe the steps. These can be added in workflow steps, event handlers, rules, and functions.

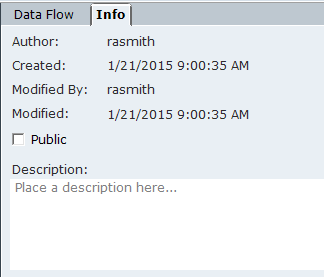

Enter a Description on the Info tab of all objects, describing the overall purpose of the object.
