HTTP Request Library Object

The HTTP Request functions enable you to invoke Web service requests.

For an example of working with these functions, see Using the HTTP Request Functions.

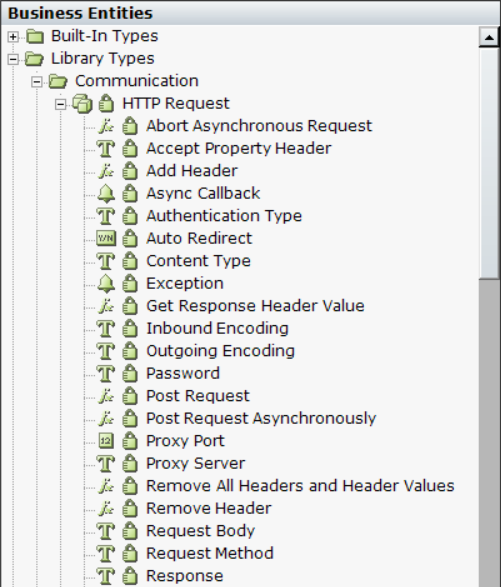

The business entities in this library are exposed under Business Entities > Library Types > Communication> HTTP Request.

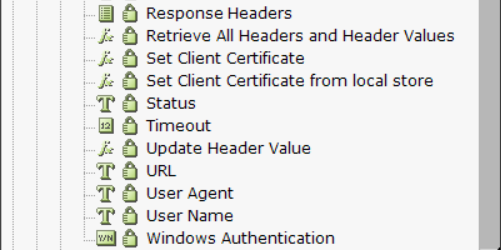

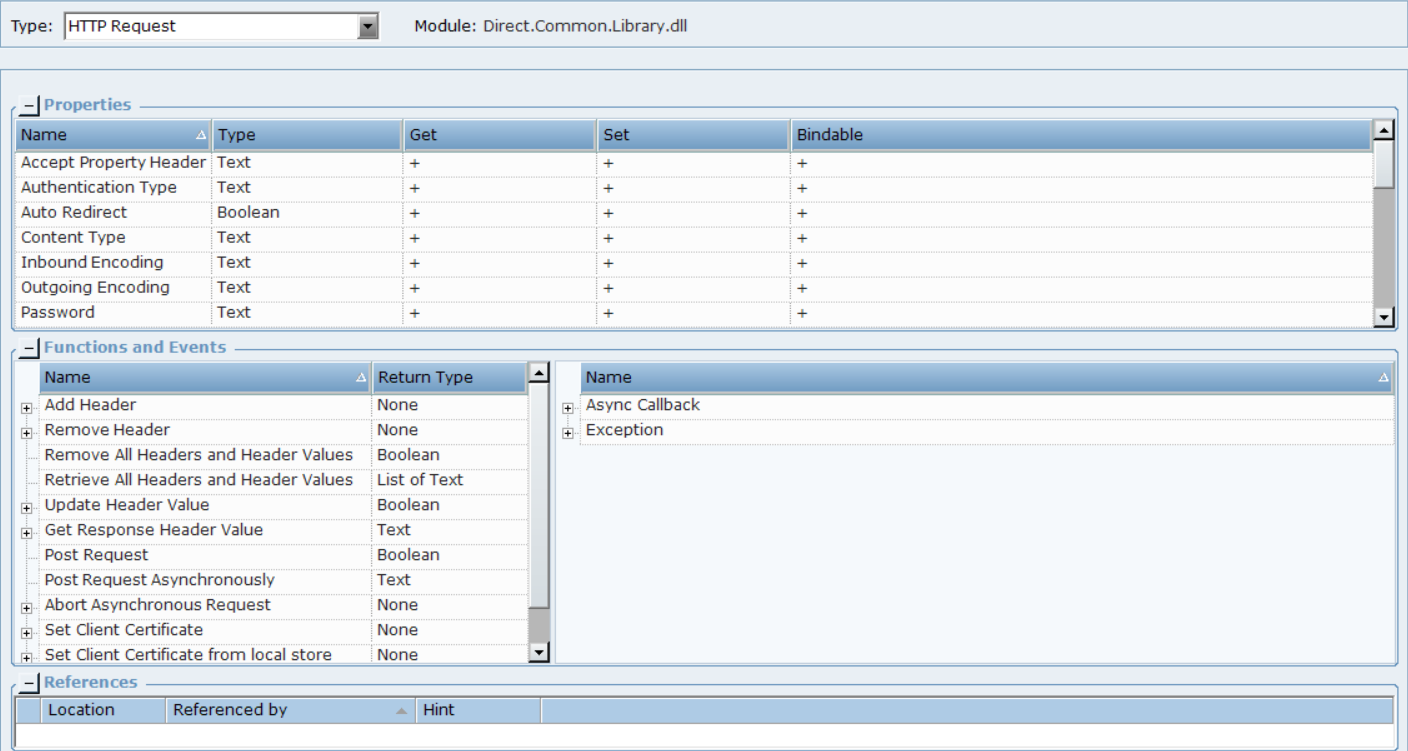

The functions are exposed under Project > References > Library References > Direct.Common > HTTP Request.

Before you use these functions, create an instance of the HTTP Request business entity. Enter the values in the required parameters to invoke the web service request.

Name	input type	description
Accept Property Header	Text	Specify the media types that are acceptable for the response.
Authentication Type	Text	The authentication mechanism supported by the Web service. The supported authentication types are: Basic: Requires a username and password from the user for authentication. Digest: Requires username and password from the user for authentication. Negotiate: Uses the Windows login credentials for authentication. NTLM: Uses the Windows login credentials for authentication.
Auto Redirect	Boolean	Indicates if automatic redirection of the Web request is enabled or disabled.
Content Type	Text	The content type for the Web request.
Inbound Encoding	Text	The encoding type for an incoming response.
Outgoing Encoding	Text	The encoding type for an outgoing request.
Password	Text	The password to connect to the Web server.
Proxy Port	Number	The port of the proxy server.
Proxy Server	Text	The URL of the proxy server.
Request Body	Text	The body of the Web service request.
Request Method	Text	The Request method for the Web service request.
Response	Text	The Response to the Web service request.
Response Headers	List of Key-Value pair	The HTTP response headers.
Status	Text	Indicates the status of the Web service request.
Timeout	Number	The Web server connection timeout time.
URL	Text	The URL of the Web server.
User Agent	Text	A user agent string containing properties of the Request user's system.
User Name	Text	The username to connect to the Web server.
Windows Authentication	Boolean	Indicates if the use of Windows authentication to connect to the Web server in enabled or disabled.

The events of HTTP Request library are listed below:

Events	Description
Async Callback	This event is raised when the execution of Post Request Asynchronously is completed.
Exception	This event is raised when an HTTP request gets an exception, after the request is sent to the server.

The functions of HTTP Request library are listed below:

Add Header

Adds a specified header with a specified value, to the HTTP Request.

HTTP headers enable the client and the server to pass additional information with the request or the response. Common HTTP response headers include Accept, Connection, and Date.

Parameter	Input	Description
Header	Text	The Header to add to the Web service request.
Value	Text	The Header value.

Returns

Does not return any value.

Abort Asynchronous Request

Aborts the asynchronous request. This can be used to abort the request that is taking a long time to process.

Parameter	Input	Description
Request ID	Text	ID of the Web service request.

Returns

Does not return any value.

Get Response Header Value

Returns the value of the specified header of a response.

Parameter	Input	Description
Header	Text	The header from which you want the response value.

Returns

Returns the response value of the specified header as text.

Remove Header

Removes a header from the HTTP request.

Parameter	Input	Description
Header	Text	The name of the header to remove from the HTTP request.

Returns

Does not return any value.

Set Client Certificate

Specifies the path of the certificate to send with the HTTP request for authentication, along with the password for the certificate.

Parameter	Input	Description
Path	Text	Path of the certificate.
Password	Text	Password for the certificate.

Returns

Does not return any value.

Set Client Certificate from local store

Specifies the path of the certificate to send with the HTTP request for authentication. The password is fetched automatically from the local machine certificate store.

Parameter	Input	Description
Path	Text	Path of the certificate.

Returns

Does not return any value.

Update Header Value

Updates the header value in a header of the HTTP request.

Parameter	Input	Description
New Value	Text	The new value to add to the header.
Header	Text	The name of the header to which to add the new value.

Returns

Returns True if the header value is updated, else returns False.
