Viewing Identification Details of the WPF Process

To view Identification details of the WPF Process:

1.

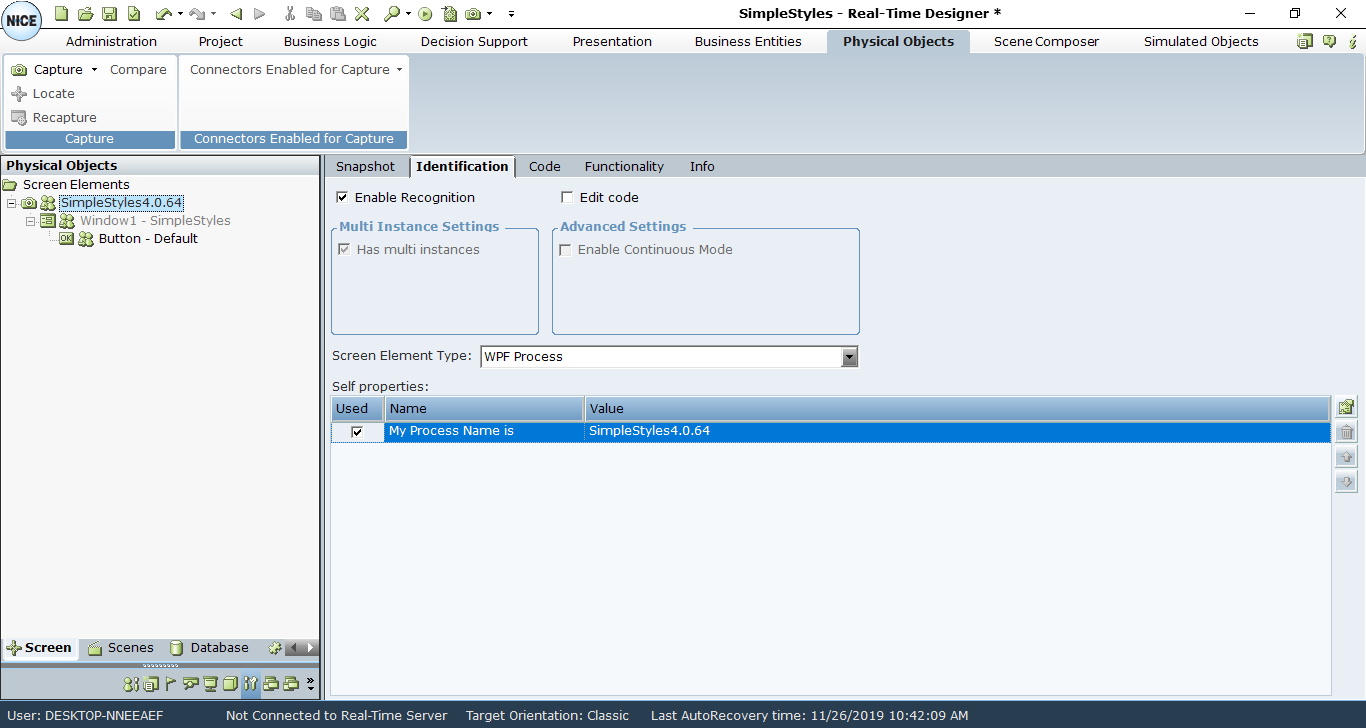

Select the process level of the captured WPF screen element in the Screen Elements tree and click the Identification tab.

The Relations section does not appear in the Identification tab for the WPF Process screen element type.

2.

The Has multi instance checkbox is selected and disabled by default. This option cannot be edited for the WPF Process.

3.

The WPF Process item is the only item displayed in the Screen Element Type drop-down list.

4.

The Self properties section provides a list of the properties that can be used to uniquely identify a WPF Process type:

My Process Name is: Provides the name of the process for the WPF application in the process tree.

You can use the Process Explorer utility (or standard Windows Task Manager) to verify the name of the process.
