Tooltips

The Real-Time Client enables you to display tooltips that show information about various elements on the screen by clicking the Help button in the Launchbar:

To close or minimize the Launchbar, click the standard Close button on the right. To reopen the Launchbar, double-click the Launchbar icon in your system tray.

When an agent clicks the Help button, the cursor changes to a hand. Then, when the agent hovers over the relevant item on the screen, a tooltip may show a callout, launch a URL, or perform an action. An example of a callout that is displayed when you hover over the result field in the calculator is shown below:

The Tooltips branch in the project tree enables you to define the tooltips that are offered to the agent.

To define a tooltip:

1. Click the New Tooltip button or right-click the Tooltips branch and select New Tooltip. A new branch is added called Tooltip by default.

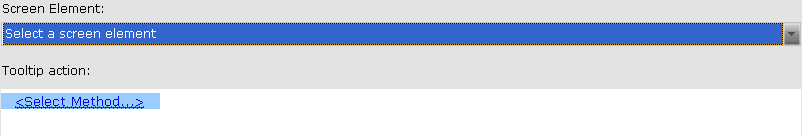

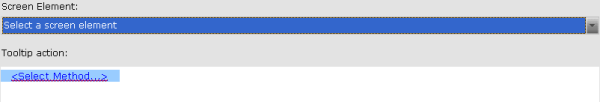

2. Click the new branch to display the following window:

3. In the Screen Element field, select a screen element that was defined, as described in Defining Screen Elements.

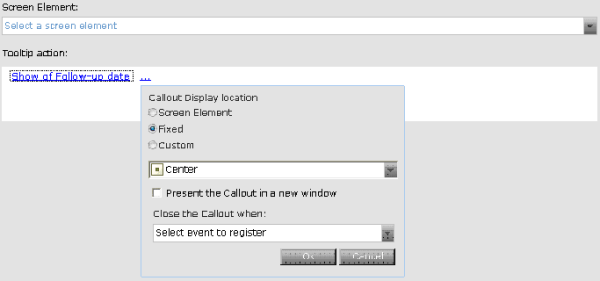

4. In the Tooltip action field, select a function, such as the one shown below:

5. Continue to define the function to be invoked, as described in Action Editor.
