Capturing a Screen Element

This option enables you to define a connection between the Real-Time Client and a screen element in a third-party application to enable Real-Time Designer to identify unique information about a screen element so that the Real-Time Client can listen for events or send commands to the third-party application to control that screen element. You can capture the elements of a screen in any order.

Screen Scale and Layout

APA Designer is not high DPI-aware. In order to prevent problems interfacing with the various applications when capturing screen elements, in the Windows Display Settings, set the Scale and layout to 100%. When running the automations, the scaling is not an issue unless you use specifically use screen coordinates/screen rectangles, in which case, the RTClient computer should be scaled to 100%.

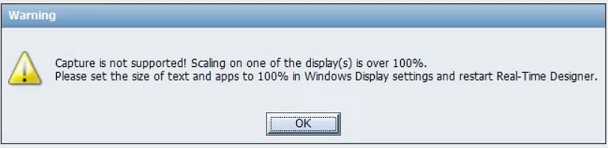

If you try and capture when the scaling on one of the displays is over 100%, an error appears. In Windows, Display Settings, set the size of the text, apps and other items to 100%, and then restart Real-Time Designer. When Real-Time Designer is started the details of all plugged in displays are logged:

2019-11-12 10:41:29,990 [1] INFO ScaleTest - OS Windows Version: 10.0.17134 (Windows 10 or above)

2019-11-12 10:41:29,990 [1] INFO ScaleTest - Display 1: Resolution: [1920:1080]; Scale: 100%; DPI: 96

2019-11-12 10:41:29,990 [1] INFO ScaleTest - Display 2: Resolution: [1920:1080]; Scale: 125%; DPI: 120

Capturing Assistant

From version 7.2, when capturing, Real-Time Designer displays a Capturing Assistant window which makes connectivity analysis easier.

This useful diagnostic tool provides immediate, visual feedback, enabling you to see what you are capturing.

The window shows you the following:

Connector

Screen Element Type (appears for Generic HTML, Web and Win32 connectors)

Window Information: Title, Class and Process

Capturing a Screen Element

To capture a screen element:

1. Open the Physical Objects > Screen tab. See Screen Window.
2. Open the relevant third-party application that runs on an agent's desktop.
3. Click the Capture tool (for most screen captures) or select the dropdown next to the Capture tool and select Capture Accessibility (to capture using the Accessibility connector).

Real-Time Designer is minimized. The client’s application opens and the cursor takes the following form:

Alternatively, you can use a keyboard shortcut to trigger screen capturing. The default screen capturing keyboard shortcut is Win+C (in Windows 10, Ctrl+Shift+Z). When using the keyboard shortcut, the cursor changes to a target and initiates the capturing action and you can click the item you want to capture in the usual manner. The keyboard shortcut for screen capturing is configurable in the Real-Time Designer > Screen Capture branch of the System Settings window. Refer to the Configuring Real-Time Designer Settings chapter in the System Administration Guide for more details.

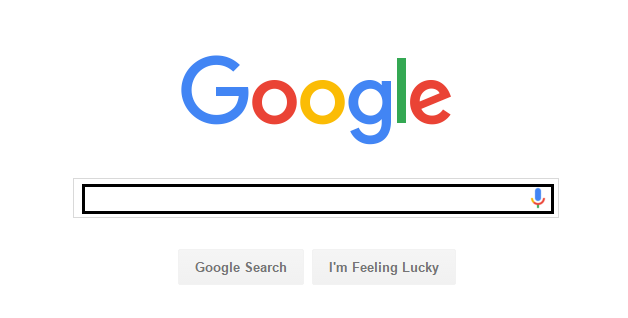

4. When capturing a screen element, Real-Time Designer draws a bounding rectangle for the screen element around the area where the cursor is currently located. This enables you to easily select the element you want to capture.

The appearance of the bounding rectangle upon capturing process is configurable in the Real-Time Designer > Screen Capture branch of the System Settings window. The parameter name is Draw screen captures rectangle in Capture tool; its default value is True. Refer to the Screen Capture chapter in the System Administration Guide for more details.
5. Right-click or click the screen element in the agent's third-party application once the element is bounded. The captured screen element appears in the Screen Elements tree in the Physical Objects pane.

For an explanation of the difference between right-click and standard (left) click when capturing elements, see Using the Snapshot Tab.
