Monitoring Services

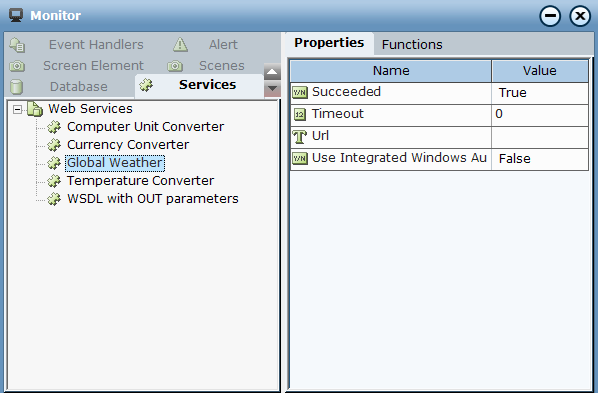

The Services tab in the Monitor window enables you to monitor the web services defined in a solution.

The Navigation pane has a root branch for the solution and sub-branches for each web service defined in the solution.

Select a web service branch in the Navigation pane to display its properties in the pane on the right. The following properties are displayed for the selected web service:

The information is relevant to the latest call in the current session of the client.

Succeeded: Indicates whether the latest run of this service succeeded (True) or failed (False) when last called by the project.

Timeout: The time that Real-Time Designer waits for the web service to complete.

Url: The URL of the web service. By default, the URL of the imported web service definition language (WSDL) is specified.

Use Integrated Windows Auth: Indicates whether to send Windows credentials in the web service consumption.
